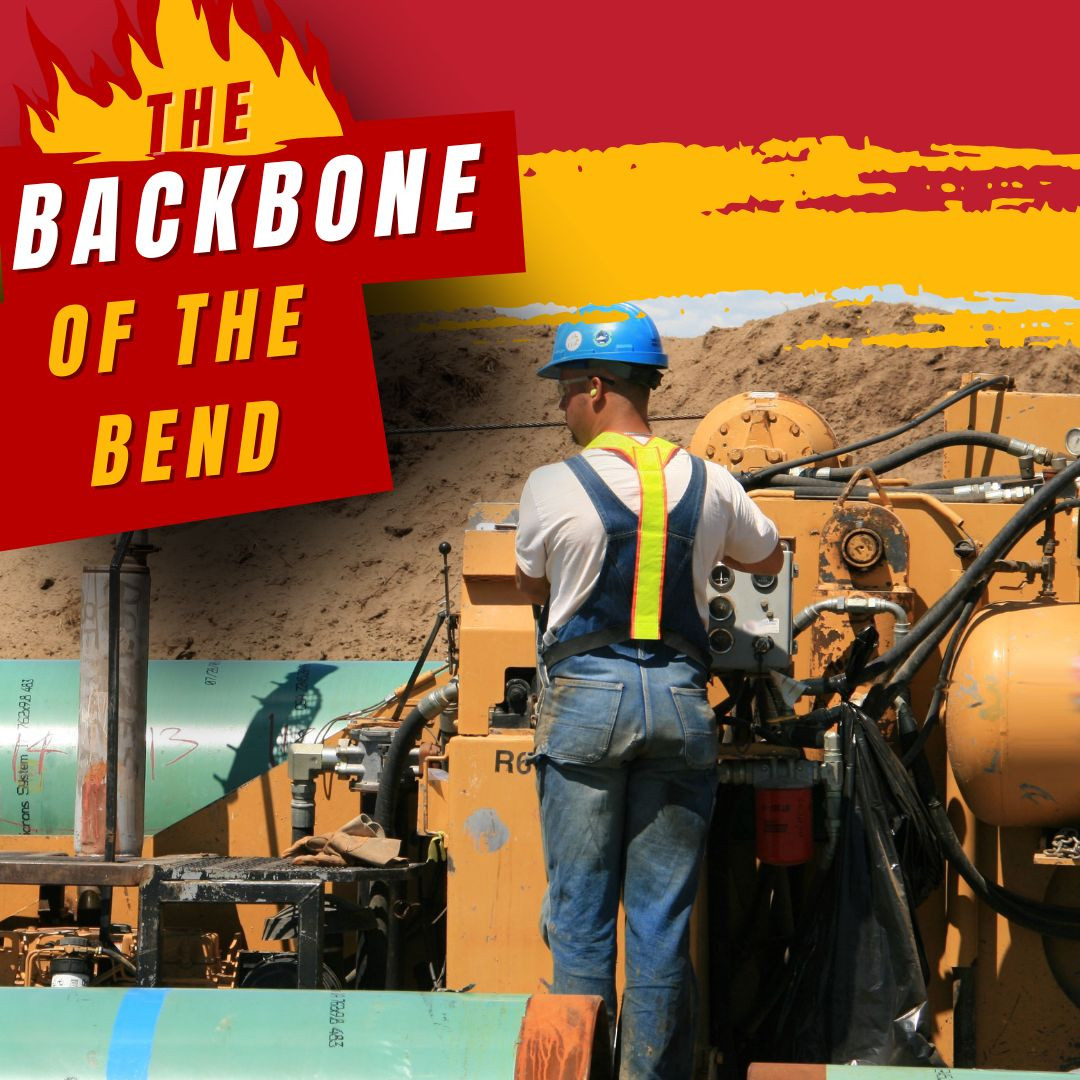

The Backbone of the Bend: The Role of Bending Machines in the Pipeline Industry
When it comes to laying down miles of steel pipeline across rugged terrain, one machine plays a quietly crucial role: the bending machine.
It doesn’t get the spotlight like sidebooms or trenchers, but without precision bends, pipe won't sit properly in the ditch or conform to the contour of the land. That’s where bending machines come in — reshaping rigid steel to follow nature’s curves, and making pipeline projects possible in the first place.
Let’s dive into what these machines do, how they work, and why they’re indispensable on any serious pipelining job.
What Is a Bending Machine?
A bending machine (also known as a pipe bender or pipeline bending machine) is designed to cold-bend large-diameter steel pipe — typically anywhere from 6” to 60” in diameter — for use in oil, gas, and water pipeline projects. These machines reshape straight pipe into smooth, controlled curves without compromising structural integrity.
They apply immense hydraulic force using a central bending die and adjustable clamps, forming the pipe against preset radii that match the terrain of the right-of-way (ROW).
Why Bending Matters in Pipelining
Terrain is rarely flat, especially in remote or mountainous regions. Pipes must contour to the land to reduce stress, avoid unnecessary welds, and ensure a stable, long-lasting line.
Here's how bending machines impact pipeline builds:
1. Precision = Fewer Welds
Fitting curved sections together precisely means fewer welds are needed. That’s faster, cheaper, and stronger overall.
2. Safer Installations
A properly bent pipe sits naturally in the trench, putting less stress on both the welds and the ground beneath — key for long-term stability.
3. Environmental Compliance
Modern pipeline projects often face strict land use regulations. Being able to follow terrain contours minimizes grading and reduces environmental disruption.
4. Faster Progress
On-site bending saves time over waiting for pre-fabricated curves. That keeps crews working and projects on schedule.
Types of Bending Machines
There are a few common styles found on the ROW:
- Hydraulic Bending Machines: The most common for field use. High-capacity and adjustable for various pipe sizes.
- Roll Benders: Often used for thinner-walled pipe or smaller diameters. Pipe is fed between three rollers to gradually form a curve.
- Mandrel Benders: Insert a mandrel into the pipe during the bend to prevent buckling — usually found in shop settings.
Field-grade bending machines, like those from CRC-Evans, Superior, or Gulf Coast, are designed for extreme conditions and tough schedules.
Operator Skill Still Matters
Even with high-end machines, bending isn’t a push-button task. Operators must understand:
- Pipe specs (grade, wall thickness, OD)
- Bend radii tolerances
- How cold weather affects steel flexibility
- How to check for ovality and wall thinning
A skilled operator prevents over-bending, flattening, or wrinkling — all things that can compromise a line.
Pipeline bending machines may not look glamorous, but without them, nothing flows. These beasts of burden are critical for adapting rigid pipe to real-world terrain, keeping lines strong, safe, and efficient.
Next time you see a stack of bent pipe ready for welders, remember: there’s a serious piece of iron behind those smooth curves — and an operator with a sharp eye making it happen.
